Dual Spouted Water Ionizer Under Sink Faucet Kit
Hover to Zoom or Click to View Larger
  • Dual Spouted Water Ionizer Under Sink Faucet Kit
  • Dual Spouted Water Ionizer Under Sink Faucet Kit
  • Dual Spouted Water Ionizer Under Sink Faucet Kit

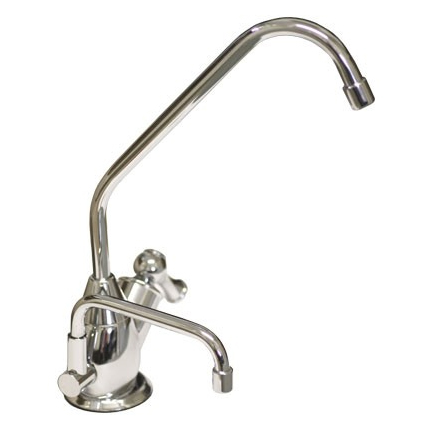

Dual Spouted Water Ionizer Under Sink Faucet Kit

[USK1] [by AlkaViva]
$199.95
  • Converts counter-top ionizer to under-sink ionizer
  • Stylish contemporary design
  • Dual spouts - For alkaline and acid water
  • Independtly swiveling faucets
  • Easy do-it-yourself installation
  • Available for the Melody/Isis, Athena and Vesta
  • Available in Brushed Nickel or Polished Chrome
  • Made in the USA
In Stock
  • Shipping Policy
top
Quantity arrow-top arrow-bottom
  • purchase
bottom
Easily Convert Your Counter-Top Water Ionizer To An Under-Sink Style Ionizer

The Melody, Athena and Vesta water ionizers come ready to install with a diverter that attaches to your water faucet. Many customers, however, desire the luxury of installing their ionizer under the sink. The optional Dual Spouted Water Ionizer Under Sink Faucet Kit allows you to install your Melody, Athena or Vesta under the sink and have access to alkaline AND acidic water from an attractive faucet. The kit provides a faucet and all the parts required for most installations.

Features
AlkaViva is proud to introduce a major revelation with the creation of a single control, double spouted and vented faucet (Patent Pending). This configuration allows for full access to the acidic water produced by the ionizer and installation is a snap. The kit comes with everything necessary for quick and easy installation. All that is needed is a wrench, a 1.5" hole wherever you want the faucet to be located and ample undersink space to house your ionizer.

This faucet has no electric controls so access to the ionizer under the counter is still needed to change pH settings, adjust flow rate or check filter life indicator. Available in polished chrome and brushed nickel finishes over lead-free metal construction.

Undersink Space Requirements
Athena - 16" tall x 15" wide x 9" deep
Melody (Isis) - 16" tall x 13" wide x 8" deep
Vesta - 16" tall x 12" wide x 7" deep

Faucet Measurements

  • Height of Faucet Above Counter: 9 inches
  • Max. Width: 9 inches
  • Hole Diameter: 1 3/8 - 1 1/2 inches
  • Hose Length: 34 inches
Enclosure (1 Piece):
(1) Dual Spout Faucet with Accessories
Faucet (5 Pieces):
(1) Dual Spout Faucet, Main Unit
(1) Trim Ring
(1) Trim Ring Gasket
(1) Large Washer
(1) Large Hex Nut
Accessories (3 Pieces):
(1) John Guest Cold Water Tee Connector
(1) Ionizer Top Spout Adapter
(1) 1/4" x 5/16" 90 Degree Fitting
Is this kit difficult to install? The installation is quite easy for typical "do-it-yourself" type folks, and requires "basic" plumbing skills. For those that are uncomfortable installing kitchen faucets on their own should certainly hire a plumber. What finish do the faucets come in? Currently, the faucets are available in polished chrome and brushed nickel. Polished chrome is a shiny mirror-like finish, while the brushed nickel is more like a matte "stainless steel sink" color. Can the under sink kit be used with any other models other than the Melody, Athena or Vesta? Although the under sink kit was made specifically with the Melody, Athena and Vesta in mind, you may be able use the under sink kit with other models of ionizers. Generally, the main requirement would be that the ionizer has to be a "flow through" type; meaning, there cannot be an on/off button that you must press to start the ionizer running. Also, you may need some tubing adapters to connect different hose sizes together. It can be a bit tricky to install this kit with other machines, but it can be done. Does the faucet that comes with this kit replace my existing kitchen faucet? No, the under sink kit faucet is meant to be a stand-alone type faucet that installs next to your regular kitchen faucet. If you have a soap dispenser or spray faucet that you are not using, generally you can remove those and install this faucet in its place. If you do not have another hole to use, you can drill a 1.5" hole next to your existing faucet. If the ionizer is below the counter, how will I change any of the settings on my machine? When putting the machine below your sink you want to make sure to have the machine close to the cabinet door in case you need to change a setting or replace your filter. But, other than changing the filter once or twice per year, most people do not actually play with the settings on the ionizer once they are set the way they want it. Once you find the pH level you are happy with, there's very little chance that you will need to change the settings on the machine.
There are no reviews yet... do you own this product?


The water ionizers that can use this under sink kit are:
*Please note: Although the Venus JP-107 can be installed with this under sink kit, it is not recommended due to the auto-clean function that occurs at machine start-up.
