COMBO Bottled Water Dispensing System
[COM1000] [by AlkaViva]
|
|||||||||||||||||||||
You are currently writing a "guest" review. If you have an account on SnyderHealth you can keep track of your review history by
$169.95
- Empty bottle automatic shut-off float switch
- Built-in check valve to prevent back flow
- Universal seal cap fits most water containers
- Compact size for easy mounting
- 20 in. (6.1 m) discharge hose included
- 3.5 ft (1 M) power cord with plug
- Quiet operation
- Easy installation
Temporarily out of stock
Perfect For Pumping Bottled Water To Your Water Ionizer When Tap Water Is Not Accessible
At just 6" x 8" the Single Inlet Bottled Water Dispensing System is the most compact system you can buy and it's the most affordable.
Features

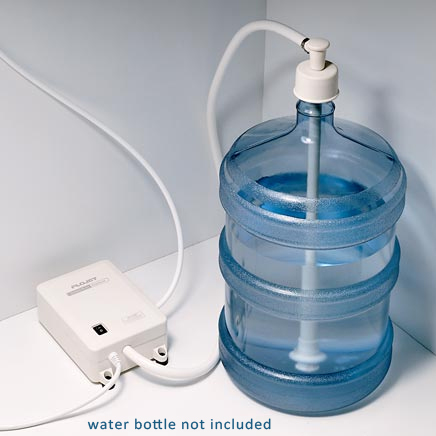

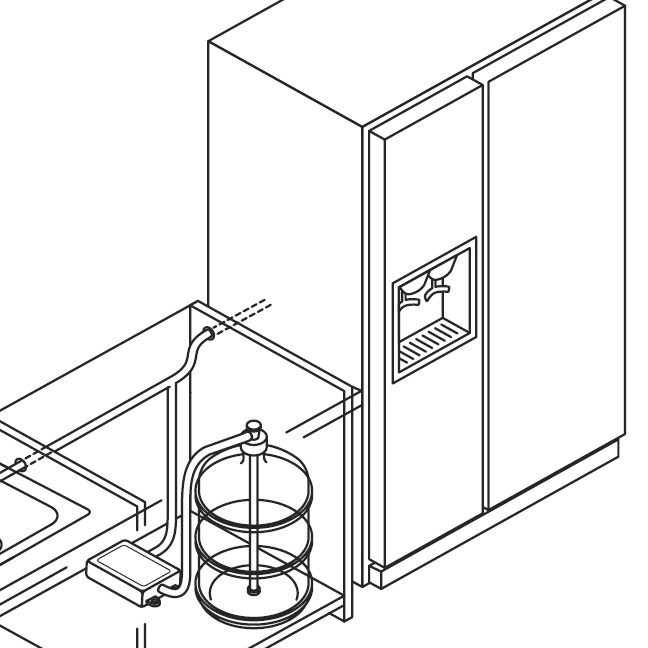

The Bottled Water Dispensing System was designed to pump water from a commercially available 3, 5 or 6 gallon water bottle. The system will deliver the water under pressure to your water ionizer, the water inlet of a refrigerator for the icemaker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
When the suction wand is inserted into the bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.
This unit is an industry standard and is one of the finest pumps on the market at an affordable price.
UL and CUL listed.

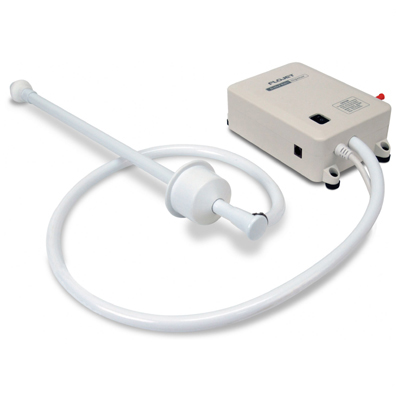

Enclosure (1 Piece):
| (1) Suction wand and hose assembly | ||
| (1) Pump module with on/Off switch | ||
| (1) 6 foot cord with plug | ||
| (1) 8 feet of 1/4" discharge tube | ||
| (1) Refrigeration fitting | ||
| (1) Universal seal cap: fits any 3, 5 or 6 gallon plastic water bottle | ||
| (1) Installation and maintenance instructions |
| Max. Flow Rate: | 1.0 gpm (3.8 lpm) |
| Max. Pressure: | 40 psi (2.8 bar) |
| Dimensions (Control Box): | 3.0 H x 5.5 W x 7.5 D inches (7.6 x 14.0 x 19.0 cms) |
| Voltage: | 115 VAC |
| Amp Draw: | 115 Volt 0.5 Amps. Max. |
| Cycles: | AC models 50/60 Hz |
| Housing Material: | ABS Plastic |
| Weight: | 6.4 lb (2.9 kg) |
| Manufacturer | sold through AlkaViva |
| Dean's Bottom Line: | This pump is perfect for those who don't have a water source, or if their tap water is undrinkable. It runs quietly, and has a small footprint (except for the bottle itself, which is not included). |
Is the pump system quiet?
The system is quiet but not silent. Just as you can hear your refrigerator, dishwasher, washing machine and dryer running , you will also hear the "humming sound" of the diaphragm pump when it is pumping.
Is it normal to hear a click when the system turns on and another one when it turns off?
Yes it is. Under normal conditions one click will be heard when the unit turns-on to supply water and one more click will be heard when it turns off.
How does the Bottled Water Dispensing System work?
The Bottled Water Dispensing System was designed to pump purified water from a commercially available 3, 5 or 6 gallon purified water bottle. The system will deliver the water under pressure to an individual drinking water faucet, a water ionizer, the water inlet of a refrigerator for the icemaker and chilled drinking water tap, and to certain commercial coffee / tea brewers. When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
Can I use the Bottled Water Dispensing with commercial coffee and tea brewing equipment?
The system will deliver the water under pressure to certain commercial coffee / tea brewers. Download the Bottled Water Dispensing Manual, before purchasing the equipment, and see under the heading "installation and use with commercial coffee and tea brewing equipment."
Can the The Bottled Water Dispensing System run continuously without damage?
No it cannot. The motor will overheat and trip out at 158°F. It will take 45-50 minutes for the motor to reach 158°F at open flow condition and 15-20 minutes to reset when the temperature drops to 131°F. Continuous cycling will "burn" the windings.
What kind of water should be used if I connect this unit to my water ionizer?
Ultimately, a water ionizer requires minerals to operate normally. Therefore, you will want to make sure to use water that has an ample amount of minerals in it. If you are using water than is "purified" (has no minerals at all) then you simply need to add an inline mineral filter cartridge to put minerals back in the water before it enters the ionizer.
-
